8CH Add Drop Mux Coarse Wavelength Division Multiplexing

  • 1
  • 2

Brand Name : GEZHI or OEM

Model Number : 8CH-OADM-C-WE-S-1RU

Certification : CE RoHS ,ISO9001

Place of Origin : China

MOQ : 1pc

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 100000Channel per month

Delivery Time : 5-8 work days

Packaging Details : Paper box

Product Name : 8CH-OADM-C-WE-S-1RU

Wavelength : 1470nm to 1610nm

Line Type : Single Fiber Dual-Side W/E

Connector : LC/UPC Adaptor

Package : 19" 1RU

Application : Channel Add/Drop

Contact Now

Add/Drop Mux Coarse Wavelength Division Multiplexing (CWDM)

8 Channel with West and East Single Fiber Link

GEZHI's TFF based CWDM OADM are designed for Static and ROADM based systems. Add/Drop Mux Coarse Wavelength Division Multiplexing (CWDM) are Course Wave Division Multiplexing (CWDM) Optical Add/Drop Multiplexers (OADM). The Add/Drop Mux Coarse Wavelength Division Multiplexing (CWDM) add (multiplex) and drop (demultiplex) selected channels, or wavelengths, on both directions of a CWDM common fiber link. Using this modules of GEZHI, network designers can add new access points anywhere on a CWDM network, without impacting the remaining channels traversing the network. Access points can be added to linear, bus, and ring networks, where the dual-direction ring design provides redundant protected architecture.

Features Applications
  • 8 channels West & East dual sided
  • Sinlge Fiber Network
  • Add & Drop functions in both directions
  • Industry standard LC connectors
  • Channel Add/Drop
  • CATV Fiber Optic Links
  • Coarse WDM Systems
  • Metro Networks

Specification

Parameter

Unit

 Add/Drop CWDM West and East
Add Drop
Channel Wavelength nm

1470~1610nm

Center wavelength

Accuracy

 nm <14

Channel Passband

 nm 0.8 (100Ghz)
Insertion Loss dB <2.5 <2.5
Channel Ripple dB 0.5
Isolation Adjacent dB >30
Non-adjacent dB >40

Inertion Loss Temperature

Sensitivity

 dB/℃ <0.005

Wavelength Temperature

Shifting

nm/

℃

 <0.002

Polarization Dependent

Loss

 dB <0.15

Polarization Mode

Dispersion

 dB <0.1
Directivity dB >50
Return Loss dB >45
Maximum Power Handling mW 300
Opterating Temperature ℃ -20~+70
Storage Temperature ℃ -40~85
Package dimension mm 19" 1U Rack Mount Chassis

Add/Drop Mux Coarse Wavelength Division Multiplexing (CWDM) Filter Cascading

8CH Add Drop Mux Coarse Wavelength Division Multiplexing

Single Fiber CWDM OADM Add and Drop Module

8 channel Add/Drop Mux Coarse Wavelength Division Multiplexing (CWDM) for EAST&WEST for data transmission over Single fibers.

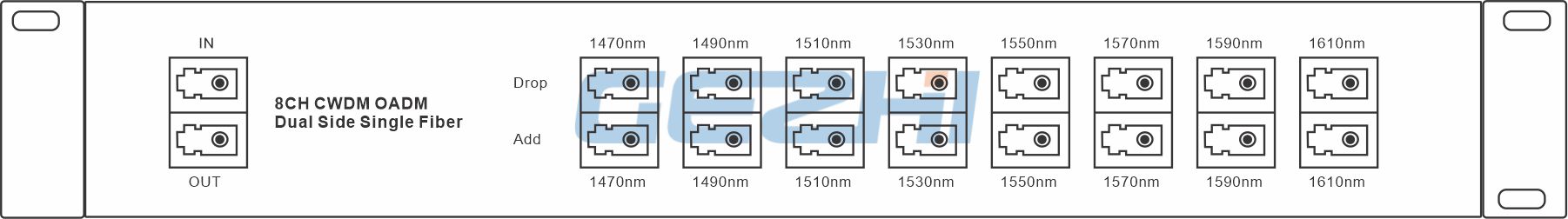

8CH CWDM OADM West East Single Fiber Rackmoutable

8CH Add Drop Mux Coarse Wavelength Division Multiplexing

Add/Drop CWDM West and East Single Fiber

8CH Add Drop Mux Coarse Wavelength Division Multiplexing
